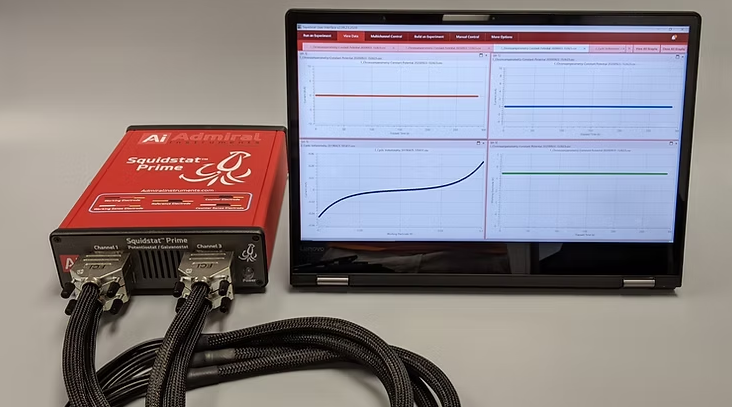

Four-Channel Potentiostat Perfect for Multichannel DC Experiments
Squidstat Prime Potentiostat Highlights:
Four-Channel Potentiostat Perfect for Multichannel DC Experiments
Squidstat Prime Potentiostat Highlights:
General Specifications
|
|
|
|
Channels Per Unit |
4 |
|
Operating Modes |
Pot / Gal / ZRA |
|
Cell Connections |
2, 3, 4, or 5 electrode |
|
ADC/DAC Resolution |
16 bit resolution |
|
Slew Rate (No Load) |
200 kV/s |
|
Maximum Sampling Speed |
40,000 samples/s |
|
Floating and/or Earth-grounding |
Both, switchable |
|
Input Impedance |
10 Tera-ohm (typical) |
|
Input Bias Current |
10 pA (typical) |
|
Data Backup Memory (Onboard) |
16 GB |
|
Physical Dimensions |
24 cm x 17 cm x 6 cm |
|
Channel Cable Length |
90 cm |
|
Computer Interface |
1 USB per unit |
|
Power Supply Requirements |
100 – 240 VAC, 50 – 60 Hz |
Potentiostatic Input/Output
|
Compliance Voltage |
±10 V per channel |
|
Scan Range (Controlled Voltage) |
1 range, ±10 V |
|
Applied Potential Accuracy |
0.1% of setpoint, 2 mV max accuracy |
|
Applied Potential Resolution |
300 µV |
|
Measured Potential Accuracy |
0.1% of setpoint, 2 mV max accuracy |
|
Measured Potential Resolution |
300 µV |
Galanostatic Input/Output
| Maximum Current | ±250 mA per channel |
| Current ranges | 8 ranges (25 nA to 250 mA) |
| Applied Current Accuracy | 0.1% of range, 1 nA max |
| Applied Current Resolution | 0.003% of range, 750 fA max |
| Measured Current Accuracy | 0.1% of range, 1 nA max |
| Measured Current Resolution | 0.003% of range, 750 fA max |
